ESL Solution

Electronic Shelf Labeling (ESL) systems are a modern retail solution that replaces traditional paper price tags with digital displays. ESL systems typically use e-ink or LCD screens to display prices, product information and other dynamic content in real time. They are often integrated with a store’s back-end systems (e.g., inventory management, point-of-sale systems) to provide seamless price updates, improve operational efficiency, and enhance the overall customer shopping experience.

If you’re considering an ESL solution for your retail business, it’s important to weigh the initial investment against the long-term operational and customer engagement benefits. With the right integration and technology partner, ESL can revolutionize the way you run your retail operations.

ESL Products

ESL0154

Resolution: 200*200
Specification size: 44.5*35.9*12
Battery capacity: 600mA
Remarks: LED light, CR2450-1 battery can be removed

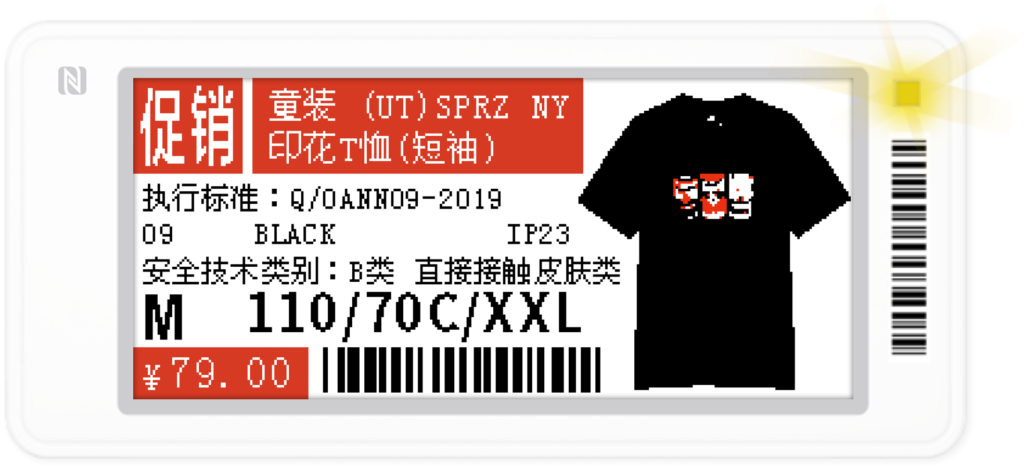

ESL0213

Resolution: 250*122
Specification size: 70*36*14.3
Battery capacity: 1200mA
Remarks: LED light, CR2450-2 battery can be removed

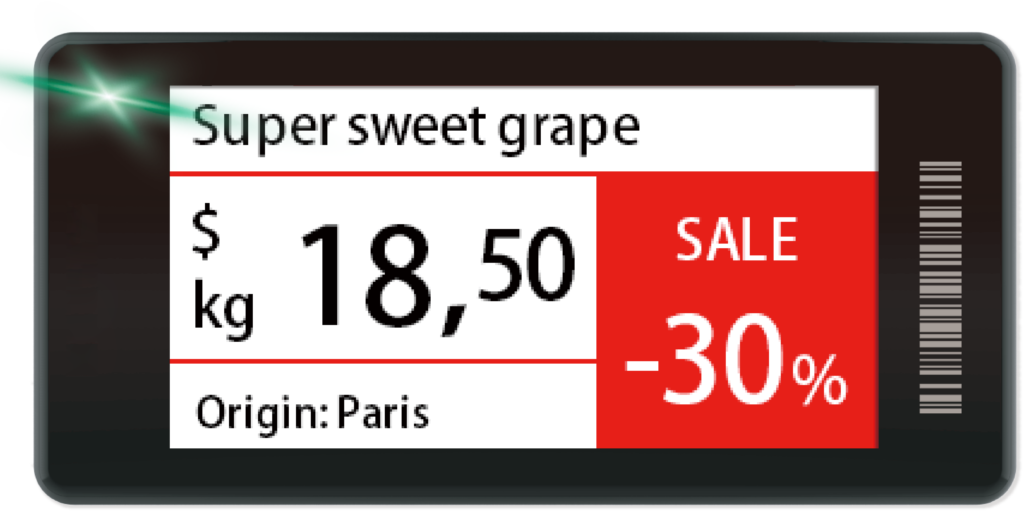

ESL0266

Resolution: 152*296
Specification size: 83*41*14.3
Battery capacity: 600mA
Remarks: LED light, CR2450-2 battery can be removed

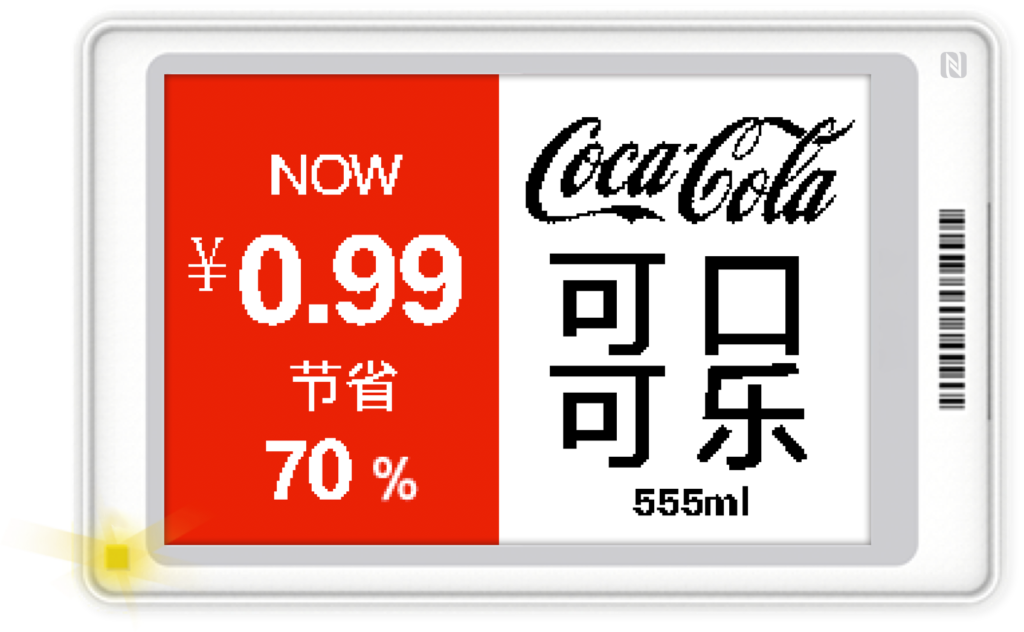

ESL0270

Resolution： 176*264
Specification size: 77.7*50*14.3
Battery capacity: 1200mA
Remarks: LED light, CR2450-2 battery can be detached.

ESL0270

Resolution: 296*128
Specification size: 90*41*14.5
Battery capacity: 1200mA
Remarks: LED light, CR2450-2 battery can be detached.

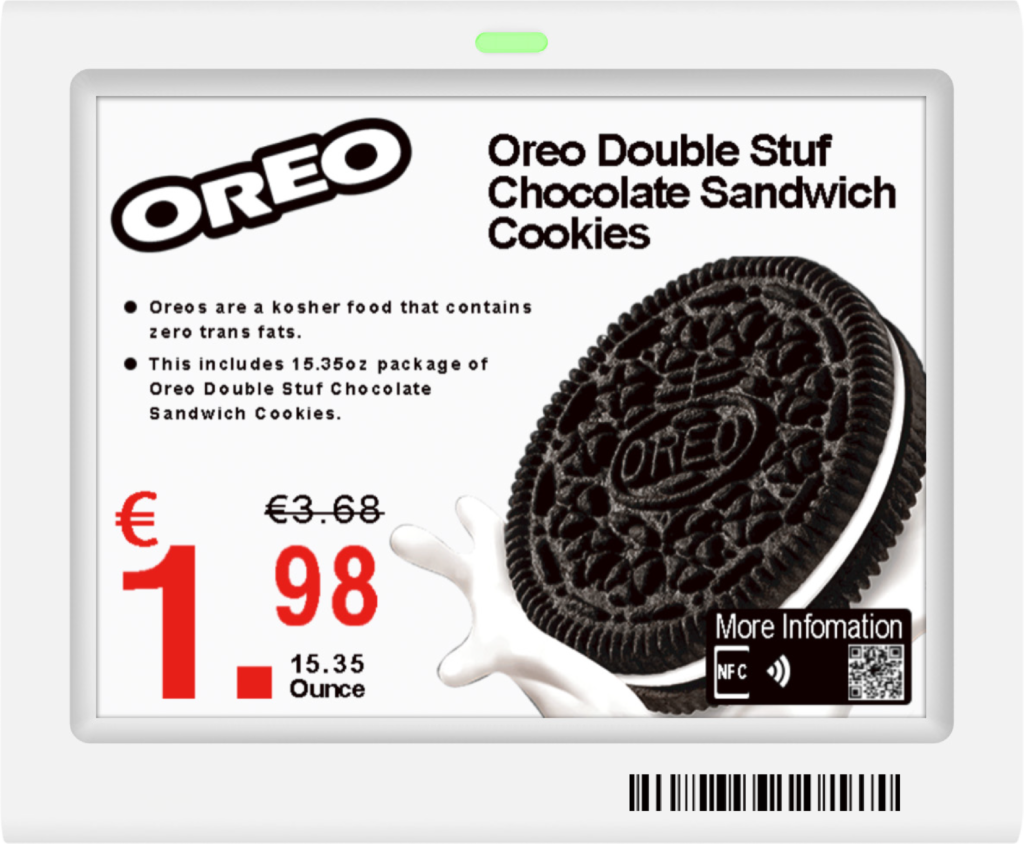

ESL0420

Resolution：400*300
Specification size:104.8*87*14.9
Battery capacity:1200mA
Remarks: LED light, CR2450-2 battery can be removed.

ESL0750

Resolution：880*528
Specification size:180.8*121.8*9
Battery capacity:2400mA
Remarks: 4*CR2430-2 Detachable, NFC

ESL1160

Resolution：960*640
Specification size:266.3*190*9
Battery capacity:3600mA
Remarks: 4*CR2430-2 Detachable, NFC

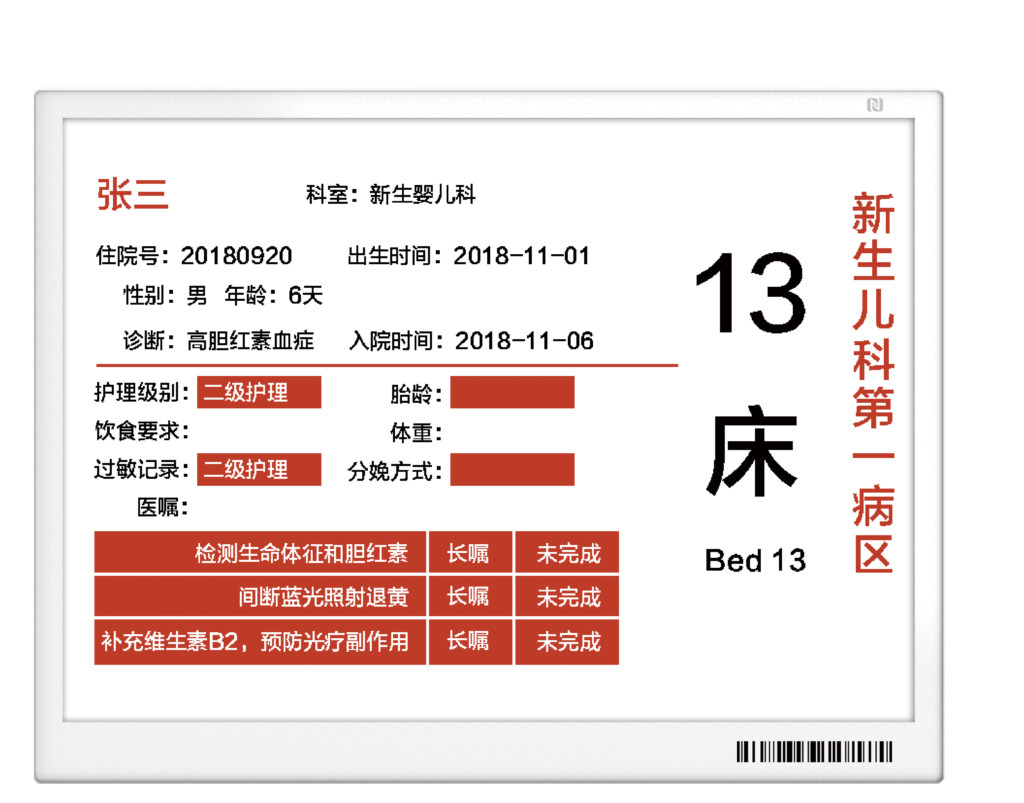

ESL1130

Resolution：960*680
Specification size:298.3*225.5*9
Battery capacity:3600mA
Remarks: 4*CR2430-2 Detachable, NFC

ESL Replacements

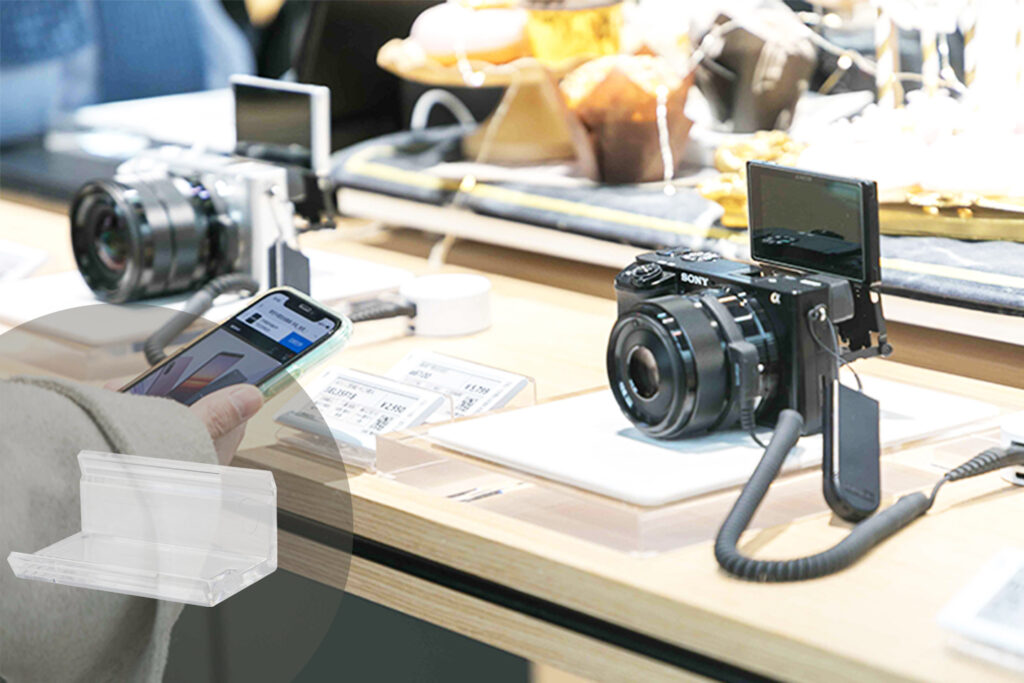

ESL table setting

ESL tool for displaying price and product information on the desktop

ESL slideway

Shelves specially inlaid with ESL electronic price tags.

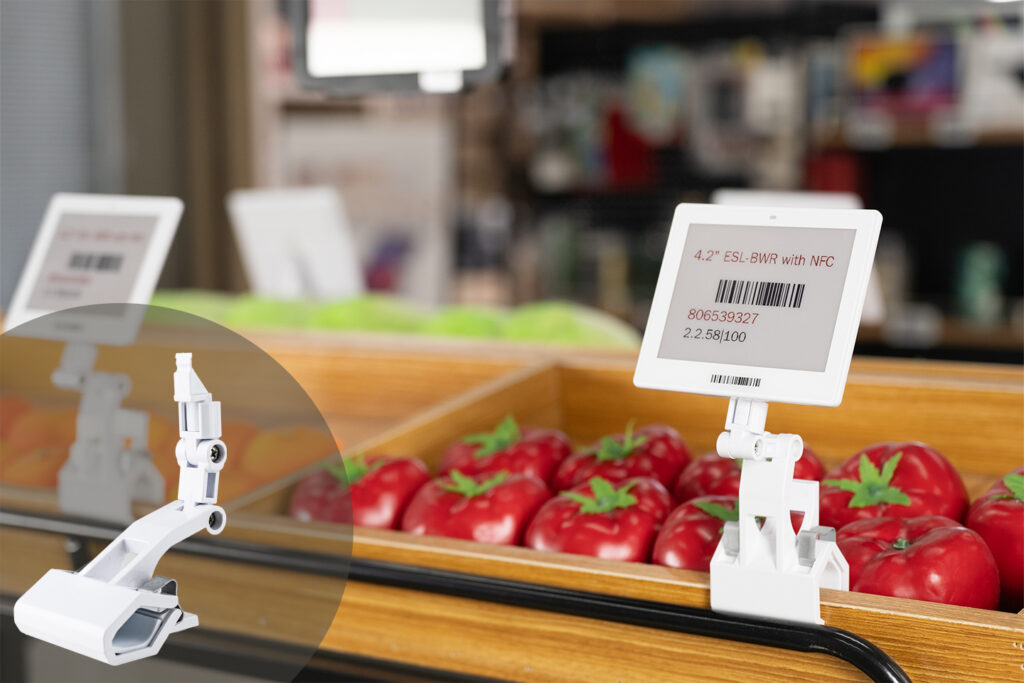

ESL brackets

Accessories for supporting and clamping ESL electronic price tags in the Fruit and Vegetable section.

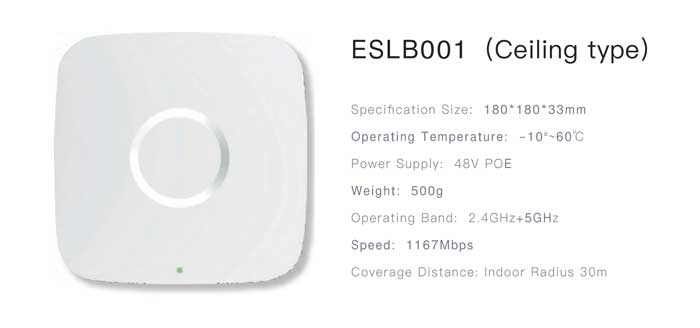

Wireless Base Station

Advantages of Wireless Base Station

Strong scalability

A single base station can manage up to 2,000 price tags, multi-AP load balancing,and more stable performance.

Wide coverage

The indoor coverage area of a single base station is up to 700 m’,and the coverage diameter of the indoor barrier-free environment is up to 40 m.

Easy to install

The installation is plug-and-play, the base station is automatically connected to the network, the cloud is automatically activated, the price tag is automatically connected,and the Bluetooth management is more convenient.

Safe and stable

AES 128-bit encryption technology highly protected information security,and impeccable privacy protection.

Smart system

Roaming in the wireless environment issmooth, the price tag automaticallysearches for and adapts to the basestation, and it is also supported byadvanced technologies such as loadbalancing and frequency hopping.

Wireless standard customization

It supports various loT protocols, suchas BLE,Sub1GHz，Wi-Fi,etc., and canquickly customize various industryapplication requirements and variouswireless standard products.

ESL Smart Store and E-Shelf Solutions

Customize Background Operations

ESL SOLUTION

Based on the development of the global Internet, retail, manufacturing, warehousing and logistics industry, tag is committed to providing customers with the overall solution of visual intelligent tag system in line with the “customer-oriented” business philosophy. From the system quality stability, system cost, product appearance and other aspects of the definition of product characteristics, to provide customers with the most reliable, the best cost-effective intelligent tag system. Help customers to reduce costs, improve work efficiency, improve customer competitiveness.

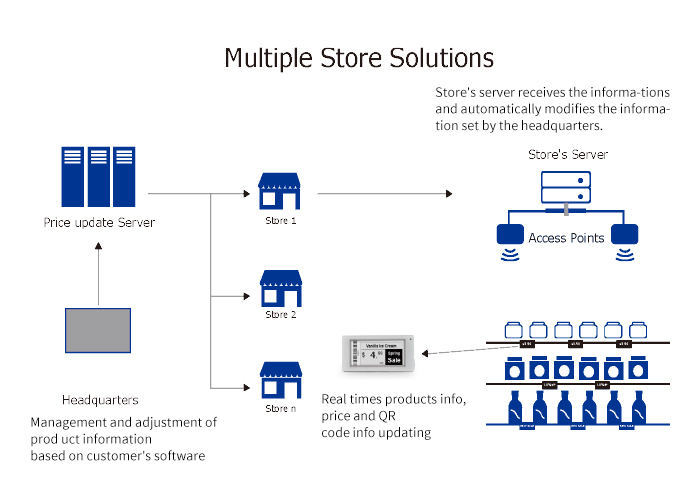

Multiple Store Solutions

DRAGON GUARD’s base station can cover all tags within a radius of 30 meters.A 2800㎡ supermarket, we recommend to install a base station and 20,000 esl tags.
Base stations are usually installed in the central ceiling position, and the power supply with network lines are in the same position, which is conducive to connect with cash collection system.

There is no limit to the number of tags that can be connected to each base station. ESL tags and base stations can be selected according to the type of commodity and the actual situation of the store. However, in order to give you a better refresh rate experience, we recommend that the number of tags for each base station should not exceed 20,000pcs.

9 Advantages for Ultimate Experience

Real Online technical support

The true cloud architecture adopts the SaaS model, which meets the digital needs of smart retail and can be used globally without installation.

Flexible deployment

From cloud to private servers, it meets various deployment modes such as group layout, enterprise level real cloud management layout, and single point layout.

Seamless and perfect docking

Whether the customer provides API interfaces or DRAGON GUARD provides API interfaces, DRAGON GUARD can seamlessly interface with the custom- er's system in the ﬁrst time.
